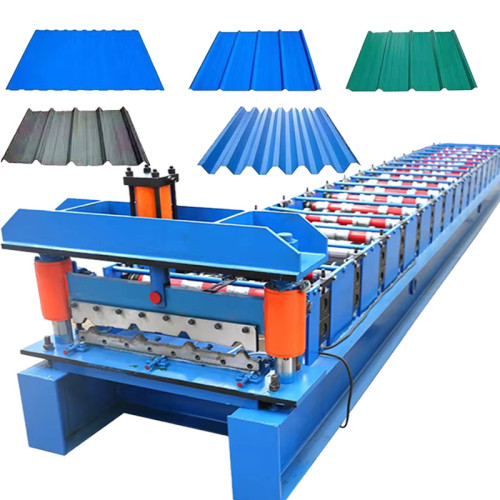

ZKRFM Trapezoidal Roof Tile Making Machine Trapezoidal Roof Sheet Roll Forming Machine Steel Motor Gear Bearing Pump ISO CE Certified 380V
- Model
- ZKRFM-Trapezoidal-RT
Item specifics
- Machine Type
- Tile Forming Machine
- Material
- Steel
- Rolling Thickness
- 0.3-0.8mm
- Feed Width
- 1000/1200/1250mm
- Voltage
- 380V / 50Hz / 3-Phase
- Forming Speed
- 15-20m/min
- Weight
- 3500 kg
- Dimension
- 4000x1200x1300 mm
- Certification
- ISO, CE
Review
Description

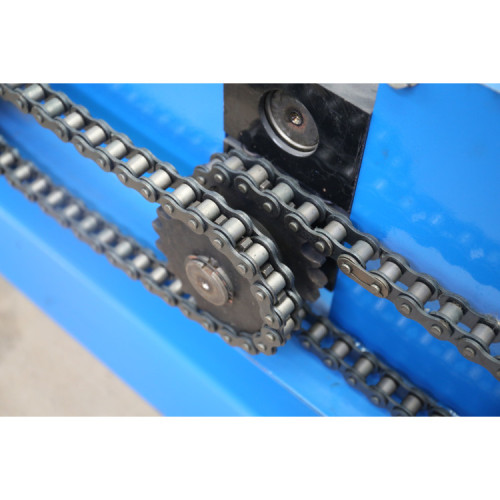

The ZKRFM Trapezoidal Roof Tile Roll Forming Machine is a high-performance, fully automatic production line engineered for manufacturing high-quality trapezoidal metal roof sheets. Built with a 350mm H-beam frame, 45# forged steel rollers with hard chrome plating, and an advanced PLC control system (Delta brand), this machine delivers precision forming, stable operation, and long service life. Ideal for steel structure buildings, industrial plants, warehouses, and residential roofing projects. Individual roller design releases internal stress of the steel sheet, ensuring excellent shape and high precision. Hard chrome plated rollers (0.05mm thickness) prevent wear and corrosion. Dual chain and gear drive system with heavy-duty roller design provides smooth, reliable power transmission for continuous production. Delta PLC with touch screen interface supports English/Chinese operation. Set orders, change length and quantity easily. Omron encoder ensures accurate cutting length. Four-column hydraulic die cutting structure with GCr12 hardened steel blades ensures stable, clean cuts at high speed. Ideal for large-span industrial plants, warehouses, and commercial buildings requiring durable trapezoidal roof panels. Free replacement parts with shipping and repair service included. Quick technical support and online troubleshooting available. Verified on-time delivery rate with professional packaging. CE (2006/42/EC) and ISO9001 certified manufacturing facility in Hebei, China. A: 30-45 days after receiving the deposit payment. A: Yes, 18 months free warranty and lifetime technical support. Damaged parts can be replaced free of charge (buyer covers shipping). A: Yes, most machines are built to customer specifications using top-brand components.ZKRFM Trapezoidal Roof Tile Roll Forming Machine
Technical Specifications
Raw Material PPGI, PPGL, Galvanized Steel Material Thickness 0.3-0.8 mm (24-26 gauge) Effective Width 1000 / 1200 / 1250 mm Forming Speed 15-20 m/min Roller Stations 18 rows Shaft Diameter Φ80 mm solid, 45# heat-treated steel Main Motor Power 5.5 kW (forming) + Hydraulic motor Voltage 380V / 50Hz / 3-phase Cutting Type Hydraulic die cutting PLC Brand Delta (Taiwan) / Omron Encoder / Schneider Electric Drive Method 1-inch double chain & gear transmission Machine Weight 3,500 kg Overall Dimension 4000 × 1200 × 1300 mm Certification ISO9001, CE (2006/42/EC) Key Features & Advantages
Precision Forming
Stable Transmission
PLC Auto Control
Hydraulic Cutting System
Applications
Steel Structure Buildings
Why Choose ZKRFM?
1 Year Warranty
≤3h Response Time
100% On-Time Shipping
CE & ISO Certified
Frequently Asked Questions
Q: What is the delivery time?
Q: Do you provide after-sales support?
Q: Can you customize the machine?
