H Beam vs I Beam: Structural Differences and How to Choose for Your Project
- Share
- publisher
- Junnan Steel
- Issue Time
- Aug 19,2026
Summary
H beam vs I beam compared: flange shape, section efficiency, load behaviour, common standards and practical selection guidance for steel structure projects.
When a steel structure project moves from design to procurement, one of the first questions is whether to use H beams or I beams. The two sections look similar at a glance, but they are rolled differently, carry loads differently, and are priced differently. For buyers in Africa and the Middle East managing warehouses, workshops, bridges, or equipment foundations, understanding the difference saves both money and structural risk. This guide explains the real differences and gives you a practical selection path. An H beam, also called a wide flange beam, has flanges whose inner and outer surfaces are parallel to each other. The web and flanges form a clear H shape in cross-section. Because the flanges are flat and wide, the section distributes material efficiently, which gives it high bending and compression capacity for its weight. An I beam, sometimes called a universal beam or standard beam, has flanges that taper slightly from the web towards the flange edges. The inner faces of the flanges are inclined, which gives the cross-section its I shape. I beams are traditional rolled sections, lighter in the flange area, and are usually used where bending is mainly in one direction. The values above are general engineering comparisons. Always confirm section dimensions, weights and allowable stresses against the specific standard edition cited in your design and mill certificate. If the member carries heavy bending in two directions or high compression, such as a column or main girder, choose an H beam. For light single-direction bending, an I beam is often enough. H beams usually cost slightly more per ton than I beams, but the section does more work per kilogram. Compare the total steel weight of the frame, not just the unit price. Projects following American practice commonly specify ASTM A992 or A36; Chinese and many African projects use GB/T 11263 with Q235B or Q355B; European-funded projects often call EN 10025 S235JR or S355JR. Ask the supplier for available sizes, standard lengths (6 m, 9 m, 12 m) and whether cutting and drilling can be done before shipment to reduce site work. Grade selection should come from the structural design. When in doubt, ask your engineer which grade the frame calculations assume, and make sure the mill certificate states the same grade and standard. Not without checking the design. The two sections have different section moduli and flange shapes, so substituting changes both strength and connection details. Only an engineer should approve a substitution. Most modern warehouse frames use H beams for columns and main rafters because of their better efficiency and easier connections. I beams may appear in light secondary members. Provide the nominal size from your design, for example HW200x200x8x12, plus the standard, grade, length and quantity. A reliable supplier will confirm the theoretical weight per metre and the total tonnage before you order. Yes. The flat parallel flange of an H beam makes fillet welds and bolted splices simpler and more consistent. The inclined flange of an I beam needs careful fit-up. Since 2015, our company has supplied H beams and I beams to steel structure projects across 118 countries and regions, with Africa and the Middle East as core markets. We supply Q235B, Q355B, ASTM A36/A992 and EN 10025 grades with mill certificates, and we can arrange cutting, drilling and container loading to match your schedule. Send us your section list and we will confirm sizes, weights and a quotation. You can also read more of our structural steel guides, review our beam and bar products, or contact our team directly.H Beam vs I Beam: Structural Differences and How to Choose for Your Project
What Is an H Beam?
What Is an I Beam?

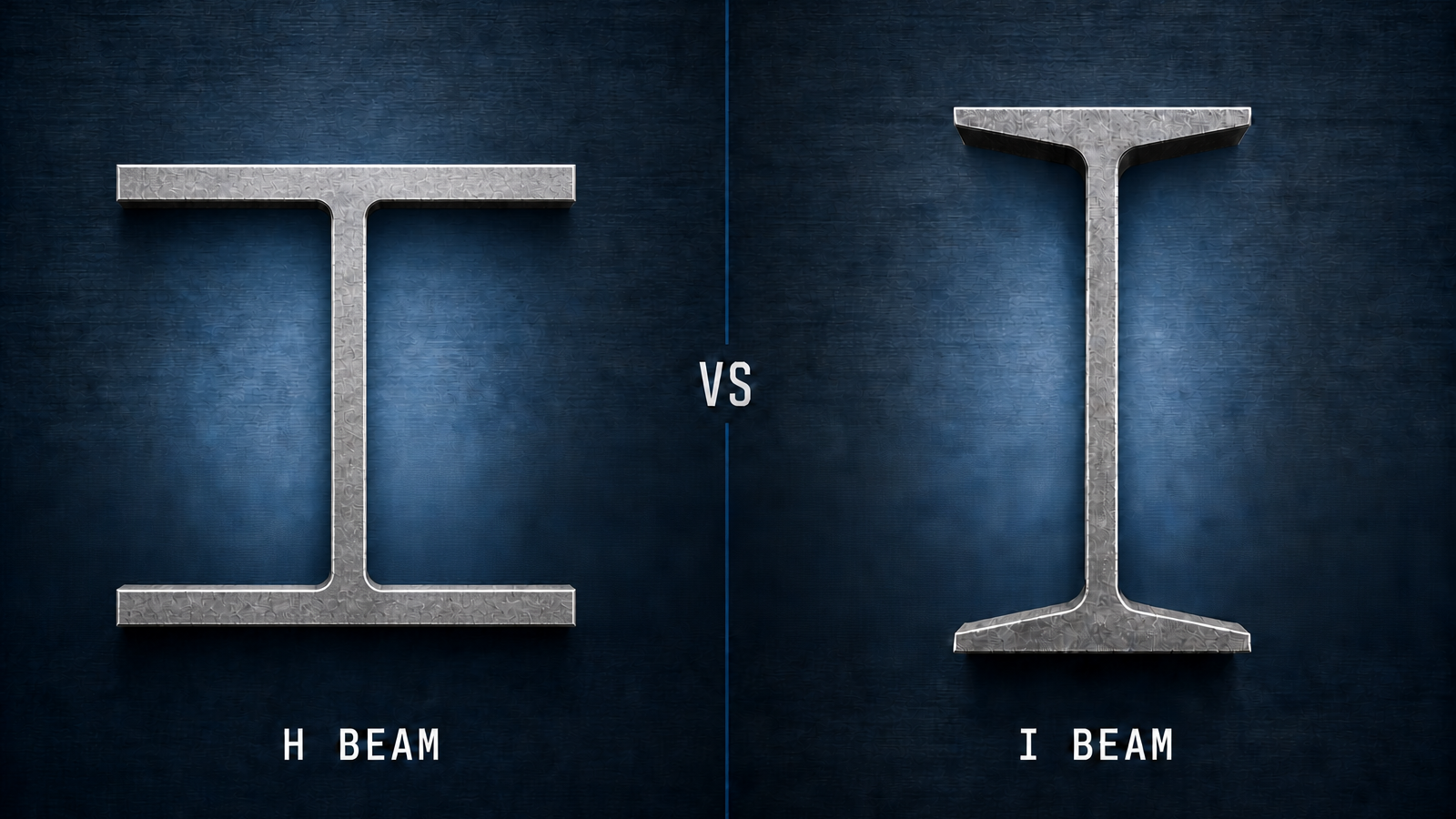

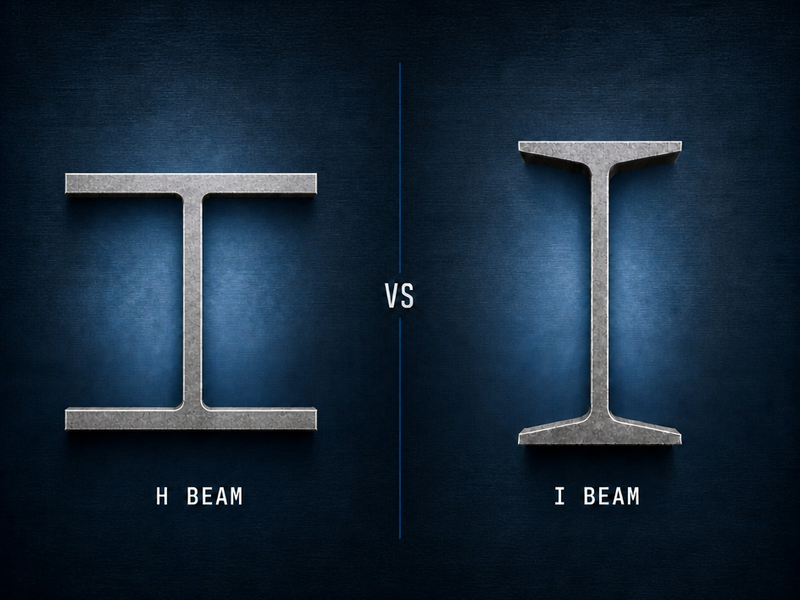

H Beam vs I Beam: Key Differences at a Glance
Item H Beam I Beam Flange shape Parallel, wide and flat Tapered, inner faces inclined Section efficiency Higher: more capacity per kg Lower: more material in the web area Load behaviour Strong in bending and compression, good for columns Best for single-direction bending Connection Easy bolting and welding on flat flanges Possible, but flange slope needs attention Typical use Main frames, columns, heavy structures Secondary beams, light frames, roof members Common standards GB/T 11263, ASTM A992/A36, EN 10025 GB/T 706, ASTM A36, EN 10024 How to Choose Between H Beam and I Beam
Check the load direction
Compare cost per ton and per metre
Match the standard your project uses
Confirm availability and lengths
Common Grades and What They Mean
Grade quick reference
Frequently Asked Questions
Can I use an I beam where an H beam is specified?
Which is better for a steel warehouse frame?
How do I order the right size?
Does the flange slope matter for welding?
Select the Section, Then Source the Steel
